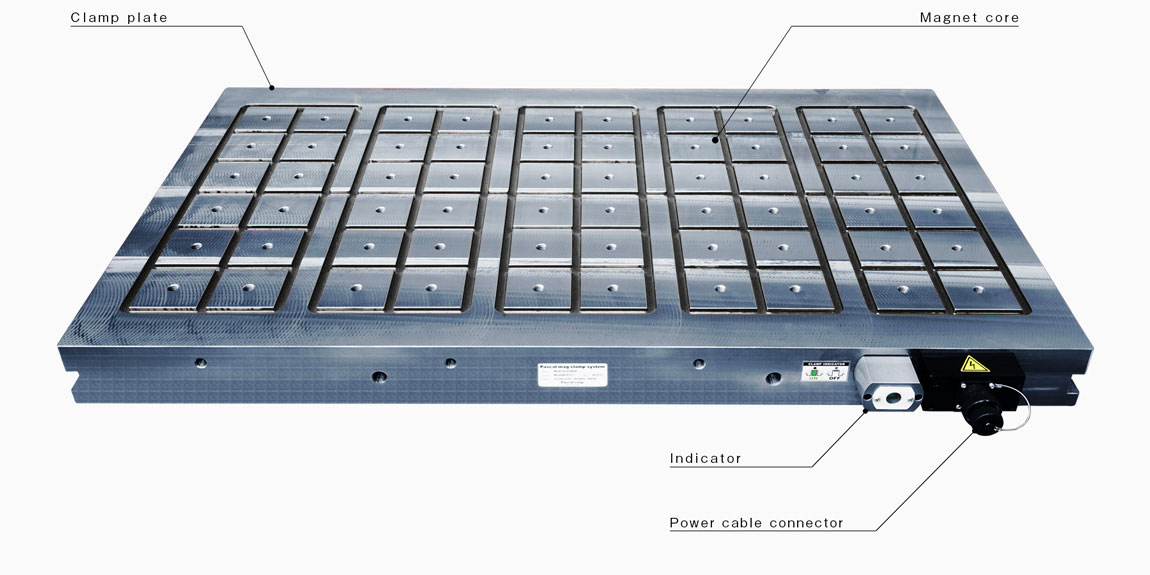

Magnetic clamp MGK
Pascal mag clamp (magnetic clamp) is a workpiece clamping system which absorbs and fixes the ferrous metal (magnetic substance)
with strong permanent magnets (Neodymium magnet, Alnico magnet).
It is no need to unify the workpiece size and it can clamp instantly at one touch operation.
Energization required only when switching on and off. The electric power is not consumed during
clamping the workpiece and there is no risk of workpiece fall due to the power outage.
Horizontal machining center
a large sized workpiece
Beveling process with magnet clamp & vertical machining center (with raising)
Beveling process with magnet clamp & vertical machining center (without raising)
