Stamping die changer

2,000 kN press - 3 ton × 1 dies

2,000 kN press - 3 ton × 1 dies

3,000 kN press - 4 ton × 2 dies

3,000 kN press - 4 ton × 2 dies

3,000 kN press - 5 ton × 2 dies

3,000 kN press - 5 ton × 2 dies

8,000 kN press - 2.8 ton × 2 dies

8,000 kN press - 2.8 ton × 2 dies

8,000 kN press - 20 ton × 1 die

8,000 kN press - 20 ton × 1 die

Stamping die changer is an automatic die changing system suitable for medium and large sized press,
which can shorten the die change time a great deal,
compared with the conventional type of die change operation by means of a forklift or overhead crane.

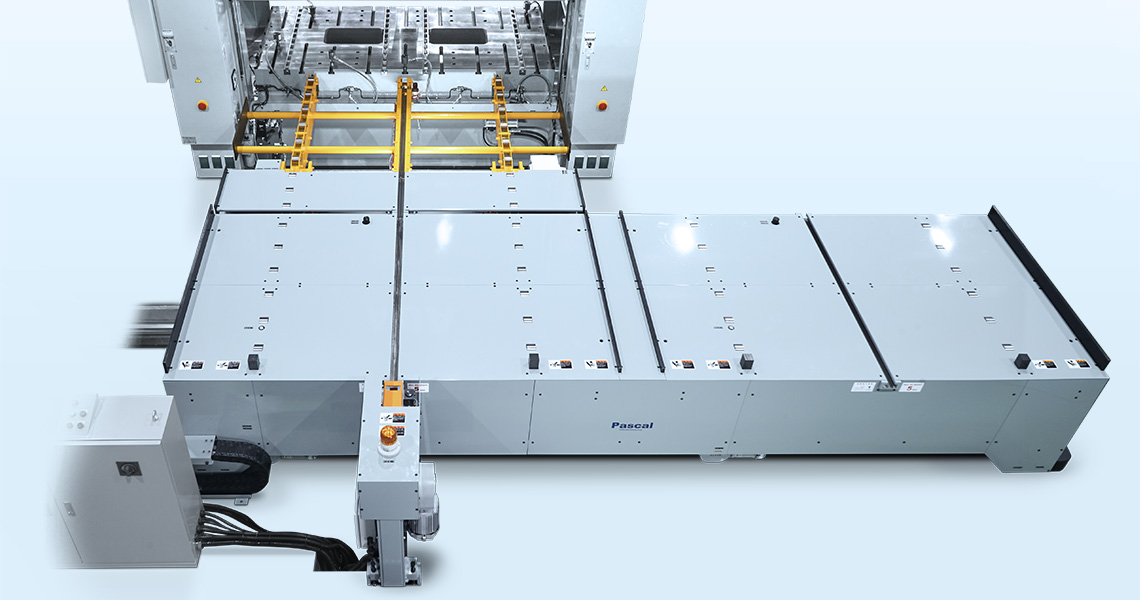

3,000 kN press - 4 ton × 2 dies

Die changer(Pitch 2.3 m)

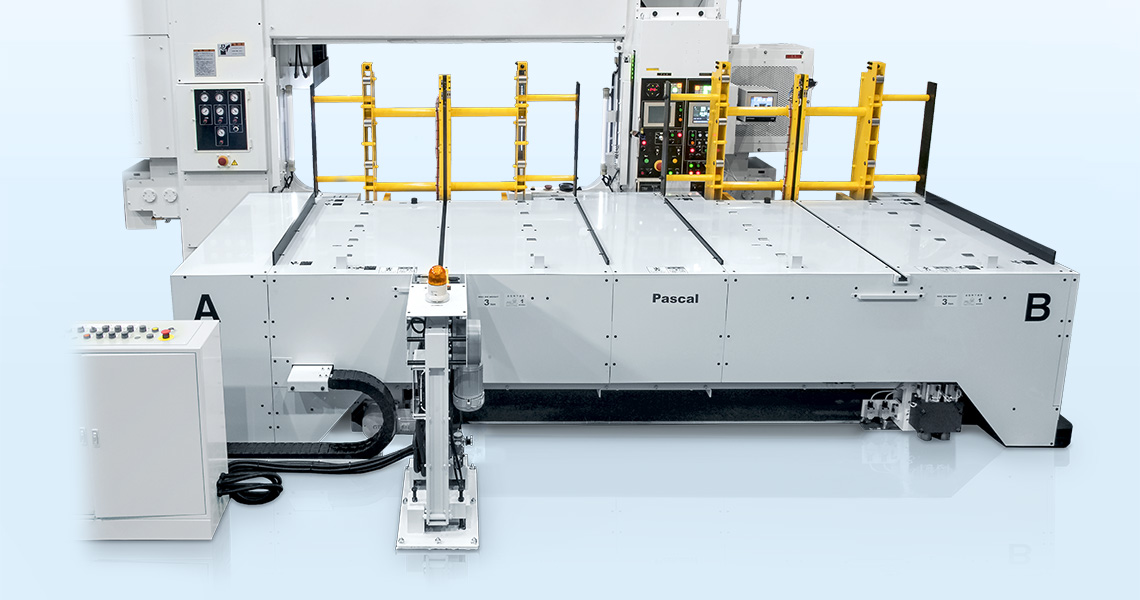

3,000 kN press - 5 ton × 2 dies

Die changer(Pitch 2.65 m)



8,000 kN press - 2.8 ton × 2 dies

Die changer(Pitch 4.6 m)

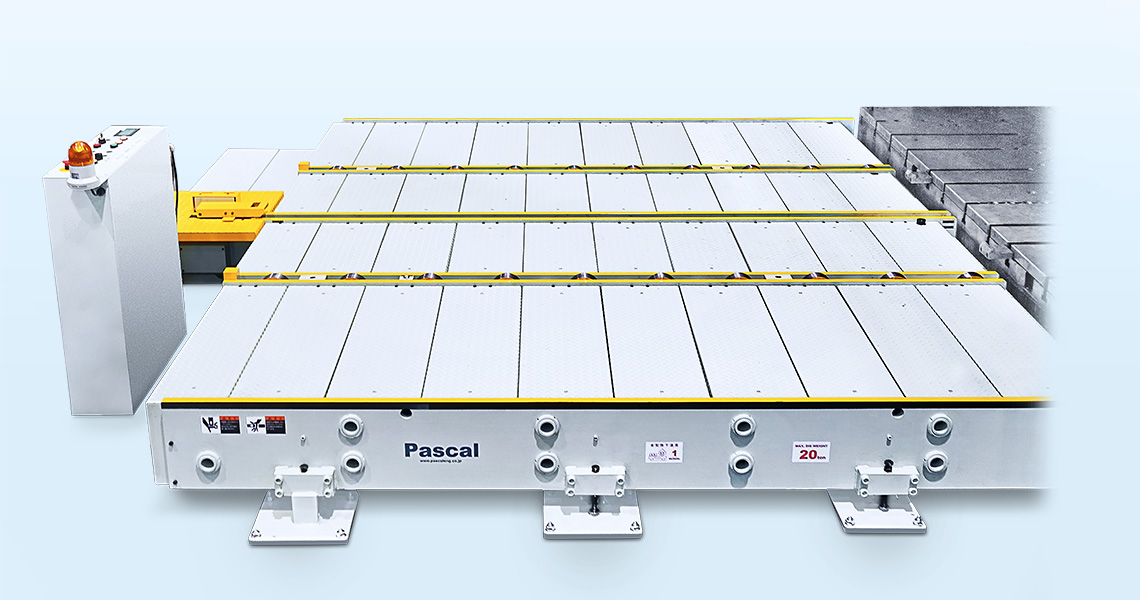

8,000 kN press - 20 ton × 1 die

Die change Fixed base

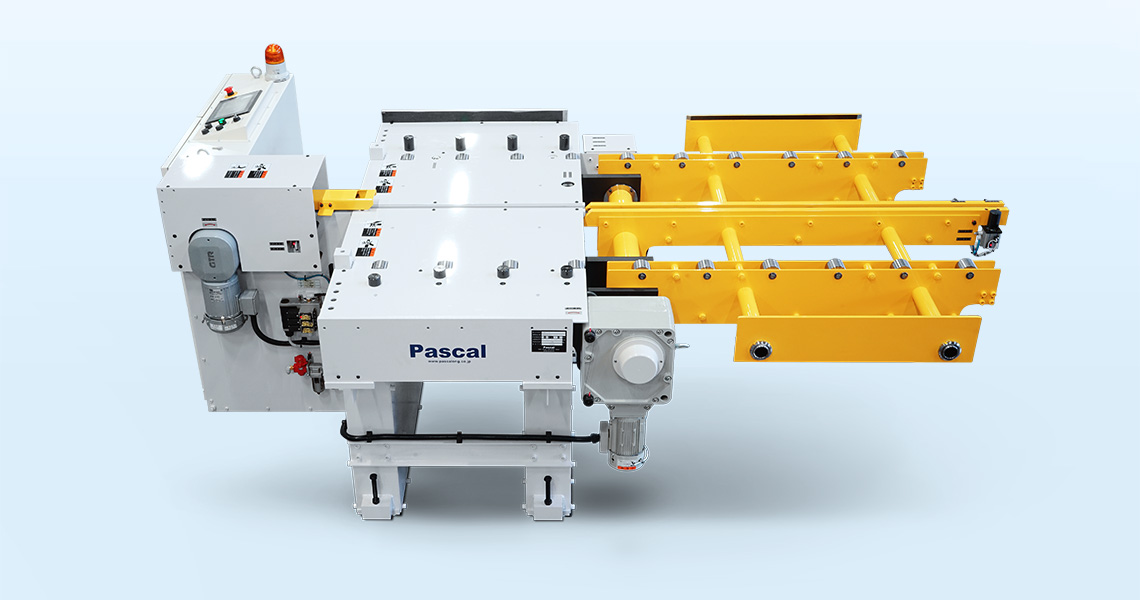

2,000 kN press - 3 ton × 1 die

Die change Fixed base
